HDPE Surface Film & Finished-Roll Shrink Film
HDPE film for SBS and self-adhesive membrane facings, commonly 100 and 150 μm. A separate 50 μm grade is available for wrapping finished membrane rolls.
The right material for the right layer.
HDPE surface film is supplied for the surface layer of SBS bituminous and self-adhesive waterproofing membranes. Selected grades can also wrap finished membrane rolls. The facing and wrapping duties require separate grade selection.
Where it is used
For SBS bituminous and self-adhesive membrane facings. Common 100 and 150 μm grades can replace cross-laminated facing in suitable membrane constructions, subject to the required performance. A separate 50 μm grade is used for heat-shrink wrapping of finished membrane rolls.
Specifications & available formats.
| Material | High-density polyethylene (HDPE) |
|---|---|
| Thickness options | 50 μm; 65–250 μm |
| Common facing thicknesses | 100 / 150 μm |
| Common finished-roll wrapping gauge | 50 μm |
| Common widths | 960 / 980 / 1000 / 1040 mm |
| Other width options | 900–1300 mm, by agreed specification |
| Order format | Facing or wrapping grade, width, core and roll format |
Include the selected specification, quantity and destination in your inquiry. Roll format and packing are confirmed with the quotation.
Technical data for the stated grade.
| Facing duty | Select against the finished membrane design |
|---|---|
| Shrink-wrap duty | Select the wrapping grade and confirm the shrink process |
| Mechanical performance | Agree for the selected thickness and application |
Facing grades and shrink-wrap grades are specified separately. A replacement facing must be assessed for the actual membrane design; no universal equivalence to cross-laminated film is claimed.
Make the order fit your production.
Identify facing or wrapping first
Tell us whether the film stays on the membrane surface or wraps the completed roll. This identifies the grade before dimensions are quoted.
Assess replacement performance
If replacing a cross-laminated facing, provide the current film sample, membrane construction and mechanical requirements for comparison.
Check the wrapping process
For shrink film, provide the wrapping equipment, roll dimensions and process conditions together with gauge and width.

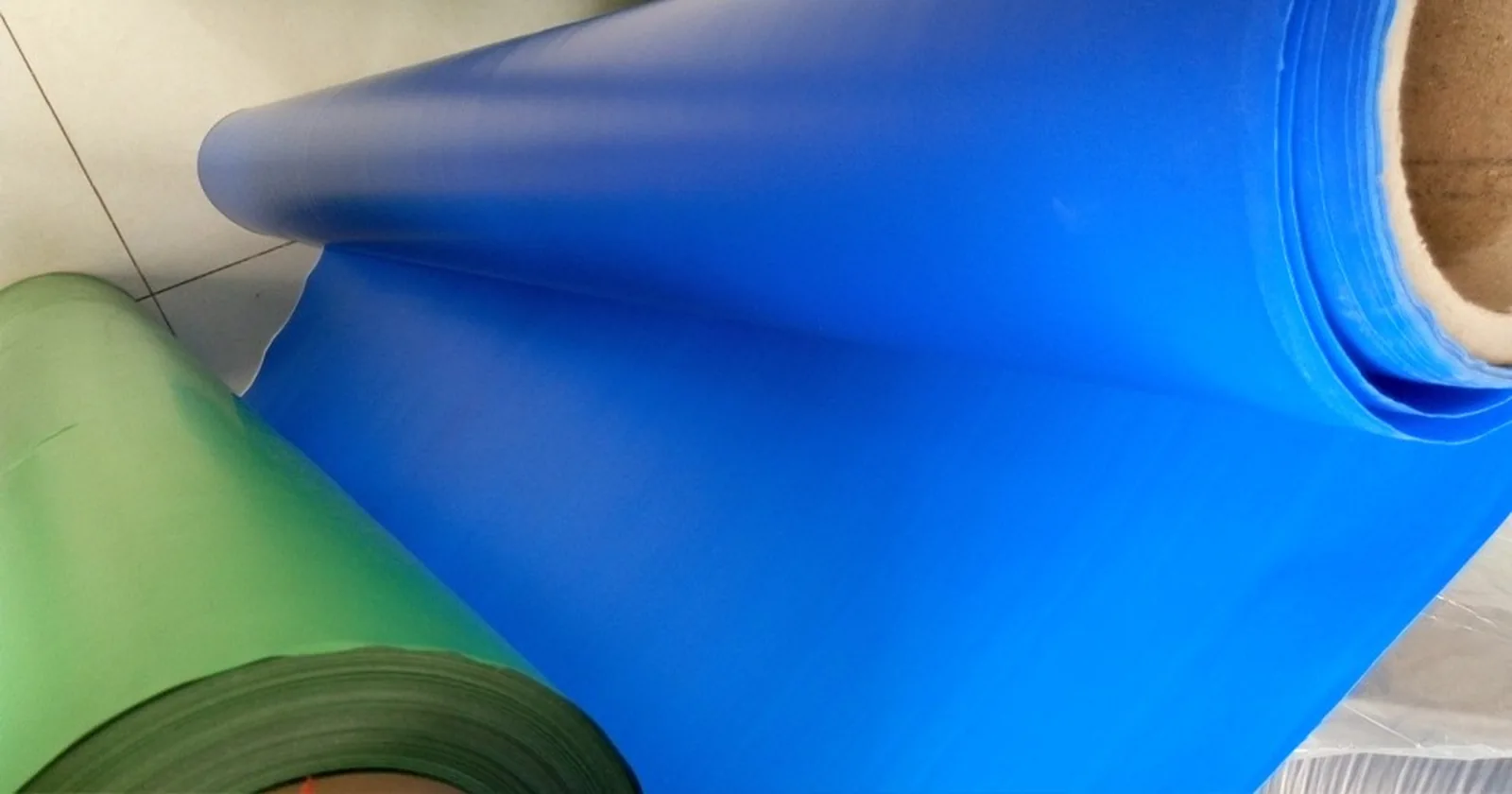

Product, packing and handling views.
Agree the packing before shipment.
| Typical roll weight | Approx. 150 kg |
|---|---|
| Six-roll pallet | 6 rolls × approx. 150 kg = approx. 900 kg of film |
| Four-roll option | 4 rolls × approx. 150 kg = approx. 600 kg of film |
| Protection | Wrapped rolls with suitable end protection and pallet restraint |
| Shipment confirmation | Confirm roll diameter, pallet dimensions and loaded gross weight with the order |
Packing photographs show examples. The final packing list states the roll count, net/gross weight and dimensions for the actual order.
Production lead time
Standard order: approximately 10 days for one 40-ft container order.
Customized specification: approximately 10–15 days.
Confirm the schedule against the final specification and order. Ocean or road transit is separate from production lead time.
Request packing and delivery details →Material yield & roll-weight planning.
| Material-volume reference | Approx. 1.08 m³ per tonne of PE / HDPE; material volume, not packed volume |
|---|---|
| 100 μm | Approx. 10.8 m²/kg |
| 150 μm | Approx. 7.2 m²/kg |
| 100 μm at 960 / 1000 / 1040 mm | Approx. 11.25 / 10.80 / 10.38 linear m/kg |
| Calculation | Area (m²/kg) = 1080 ÷ thickness (μm); length/kg = area ÷ width (m) |
Yield is a theoretical material reference. Cross-laminated mechanical properties remain specific to the tested grade; a similar yield does not establish equivalent strength. Core, coating and packing are additional.
Download the raw-material catalogue.
Keep the specifications together.
Download the English raw-material catalogue, with separate specifications and technical-data sections.
Questions about HDPE Surface & Shrink Film.
Which thickness should I request?
100 and 150 μm are common membrane-facing gauges. 50 μm is common for finished-roll shrink wrapping. Other listed grades are within 65–250 μm. Facing and wrapping grades are quoted for their specific duty.
Can HDPE film replace cross-laminated film?
It can be considered as an alternative facing in suitable membrane designs. Compare the required properties and verify the selected grade rather than assuming the structures are identical.
Can it be used with self-adhesive membranes?
Selected HDPE facing grades are used on self-adhesive membranes. Specify the application so the facing is not confused with a removable release liner.
Materials for the next layer.
PE Surface Film
7–15 μm thickness range · 8 / 12 μm common gauges
View specifications →
HDPE Cross-Laminated Film
Cross-laminated HDPE · 100 / 150 μm common gauges
View specifications →
PE Release Film
35 / 40 μm common gauges · 960 / 1060 mm common widths
View specifications →Send your specification.
Get a clear material quote.
Tell us what you produce, the material you need and your required roll format. Include the quantity and destination port so we can prepare the product and packing details together.
Useful details: thickness or basis weight, width, roll length or weight, core, quantity and application. For release film, add coated side and release requirements.
Standard production: approximately 10 days for one 40-ft container order. Customized specifications: approximately 10–15 days. Confirm the schedule with the final order.
