Metallized PET Film for Waterproofing Membrane Facings
PET film with a deposited aluminium coating for metallic membrane-facing applications. Common 25 and 36 μm gauges describe the PET substrate—not a solid foil layer.
The right material for the right layer.

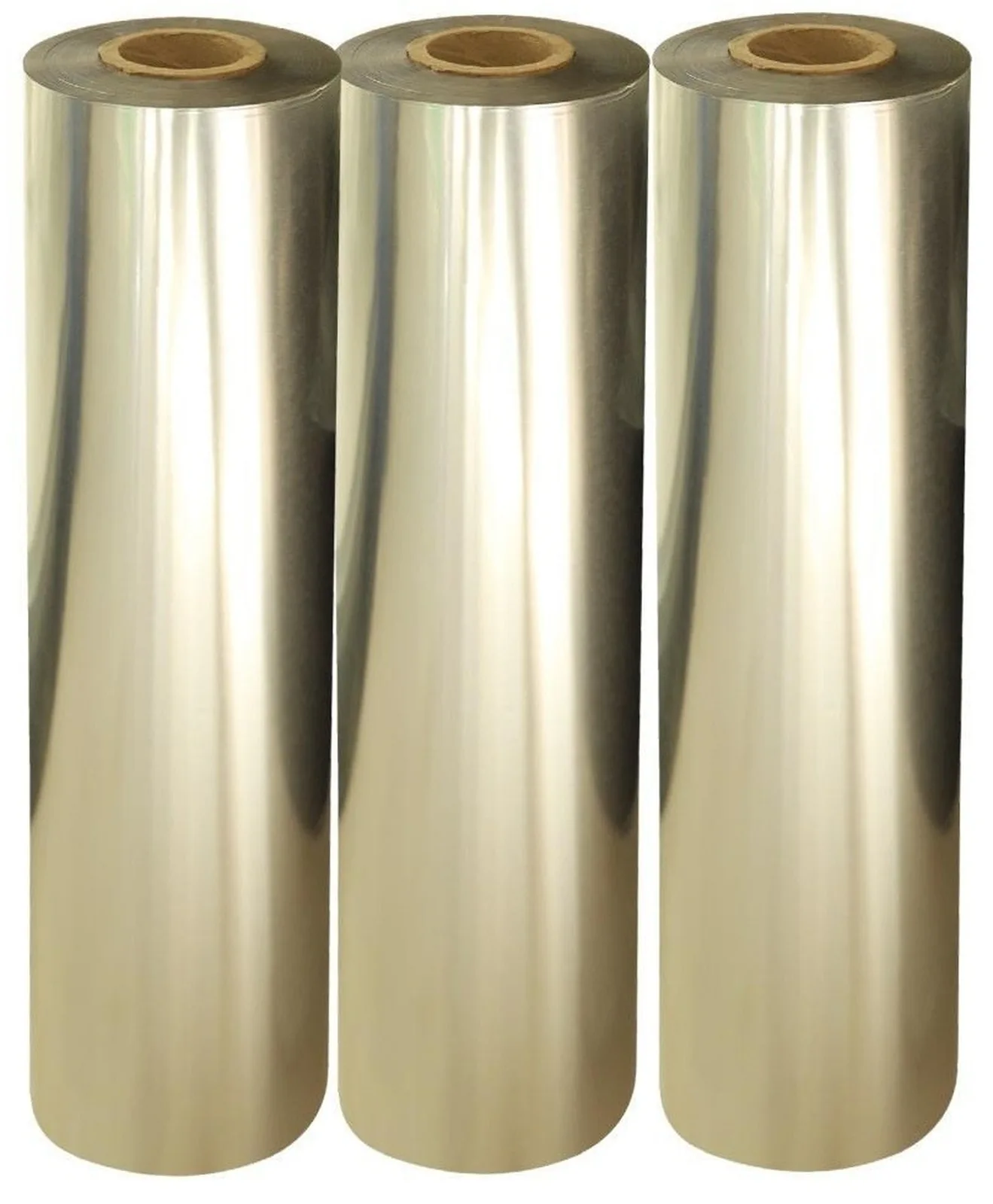

Metallized PET film provides a metallic surface on a polyester film substrate. Its construction differs from PET laminated to solid aluminium foil, even when the two materials look similar in a roll photograph.
Where it is used
For metallic membrane-facing designs where metallized PET is specified. Confirm coating-side orientation, bonding method and converting conditions with the product specification.
Specifications & available formats.
| Substrate | Polyethylene terephthalate (PET) |
|---|---|
| Common substrate thicknesses | 25 / 36 μm |
| Metallic layer | Deposited aluminium coating |
| Gauge definition | Stated thickness is the PET substrate thickness |
| Roll dimensions | Width and roll length to the selected order |
| Common roll length | Approx. 5000 m |
Include the selected specification, quantity and destination in your inquiry. Roll format and packing are confirmed with the quotation.
Technical data for the stated grade.
| Construction | Metallized PET, without a separate solid foil layer |
|---|---|
| Coating orientation | Specify which face is coated and how it is wound |
| Grade selection | Confirm the PET gauge and the required facing performance |
Mechanical data for solid aluminium foil / PET laminate is not used for this product. Agree the selected metallized PET specification separately.
Make the order fit your production.
Identify the metallic structure
If a specification requires a solid aluminium foil layer, select the laminate page instead. A silver appearance does not establish that structure.
State the coated face
Provide the bonding method, coating orientation and winding requirements to avoid an incompatible production roll.
Quote on a clear gauge basis
Use 25 or 36 μm PET substrate thickness, required width and roll length when requesting a quotation.

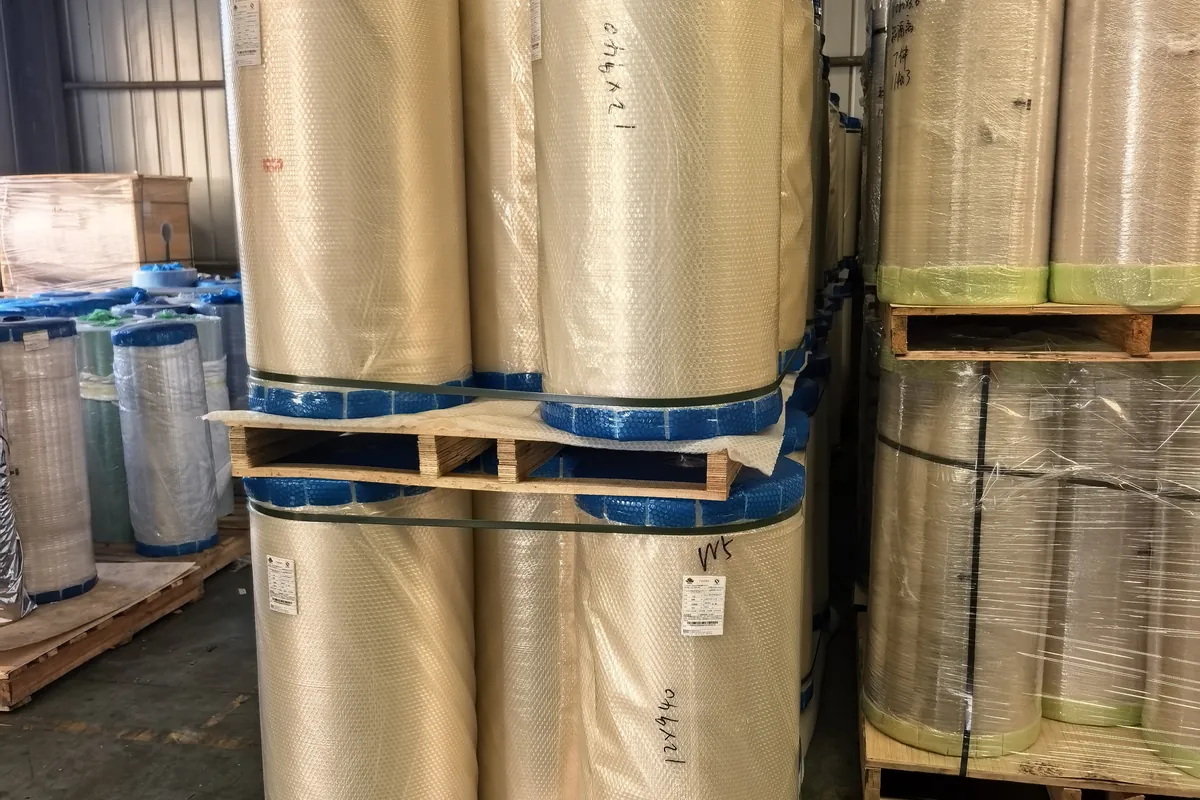

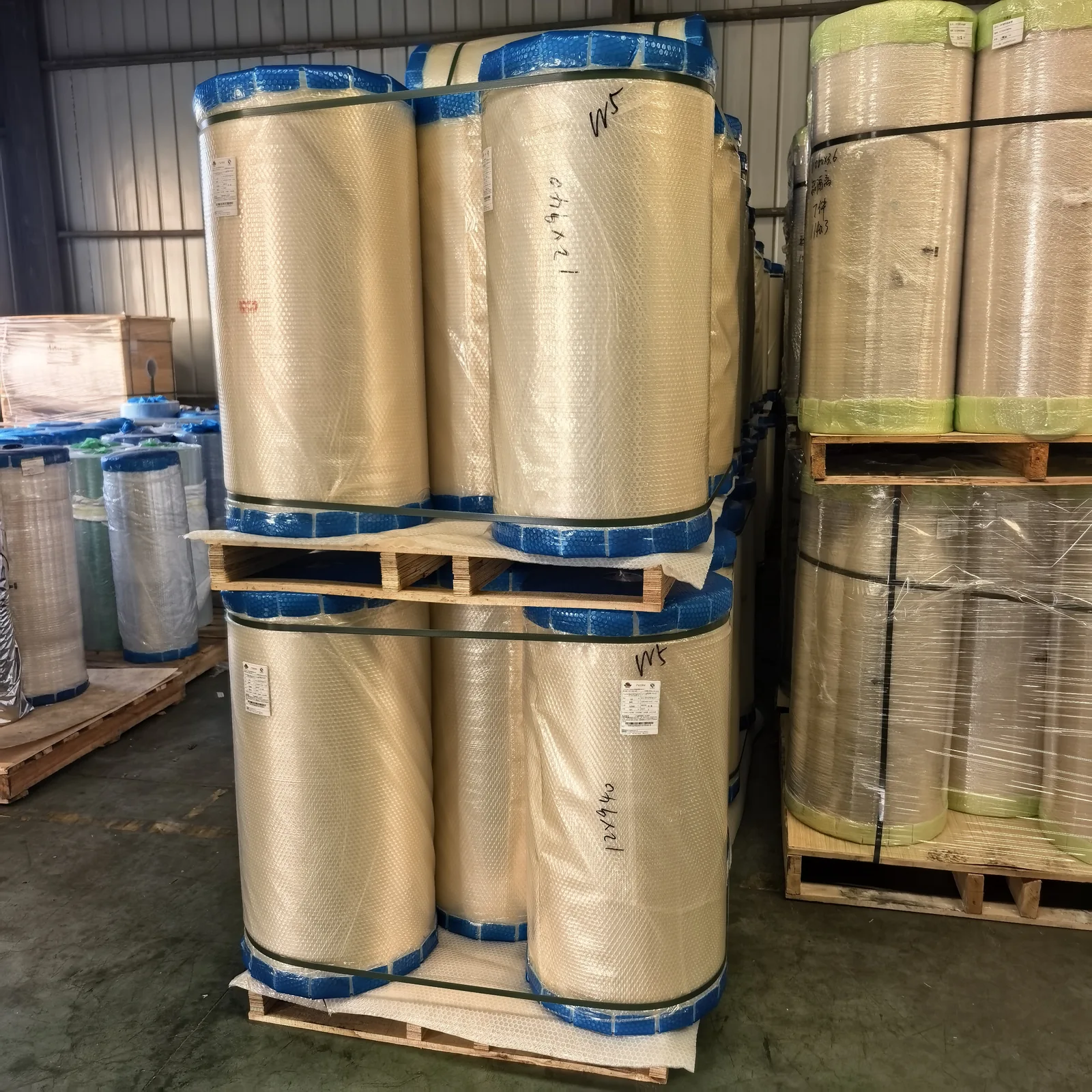

Product, packing and handling views.
Agree the packing before shipment.
| Common roll length | Approx. 5000 m |
|---|---|
| Typical pallet layout | 4 rolls per pallet |
| Pallet planning reference | Approx. 900 kg; actual film weight varies with PET gauge and width |
| 25 μm / 5000 m example | Approx. 169 kg at 960 mm width; approx. 187 kg at 1060 mm width, per roll |
| 36 μm / 5000 m example | Approx. 243 kg at 960 mm width; approx. 269 kg at 1060 mm width, per roll |
| Final packing | Confirm roll net weight, core and protection; pallet gross weight includes packing |
Packing photographs show examples. The final packing list states the roll count, net/gross weight and dimensions for the actual order.
Production lead time
Standard order: approximately 10 days for one 40-ft container order.
Customized specification: approximately 10–15 days.
Confirm the schedule against the final specification and order. Ocean or road transit is separate from production lead time.
Request packing and delivery details →Material yield & roll-weight planning.
| PET material-volume reference | Approx. 0.71 m³ per tonne; material volume, not packed volume |
|---|---|
| 25 μm PET substrate | Approx. 28.4 m²/kg |
| 36 μm PET substrate | Approx. 19.7 m²/kg |
| Calculation | Approx. PET area (m²/kg) = 710 ÷ substrate thickness (μm) |
Yield uses the PET substrate reference; it excludes core, packing and the effect of the deposited coating. Four-roll pallet weight depends on gauge, width and length. Approx. 900 kg is a planning reference, not the weight of every 5000 m format.
Download the raw-material catalogue.
Keep the specifications together.
Download the English raw-material catalogue, with separate specifications and technical-data sections.
Questions about Metallized PET Film.
Does this product contain 7 μm aluminium foil?
No. The aluminium is a deposited coating. The stated 25 or 36 μm gauge refers to the PET substrate.
Which product has a solid aluminium layer?
PET / Aluminium Foil Laminate contains a separate solid foil layer. Its common builds are listed on the separate laminate page.
What details are needed for an inquiry?
Send PET gauge, film width, roll length or maximum roll weight, coating-side orientation, intended facing application, quantity and destination.
Materials for the next layer.
PET / Aluminium Foil Laminate
35 / 40 / 45 μm common totals · 7 μm solid aluminium layer
View specifications →
PET Carrier Film
PET film carrier · 70 / 100 μm listed gauges
View specifications →
PET Release Film
25 / 30 / 36 μm common gauges · 960 / 1060 mm common widths
View specifications →Send your specification.
Get a clear material quote.
Tell us what you produce, the material you need and your required roll format. Include the quantity and destination port so we can prepare the product and packing details together.
Useful details: thickness or basis weight, width, roll length or weight, core, quantity and application. For release film, add coated side and release requirements.
Standard production: approximately 10 days for one 40-ft container order. Customized specifications: approximately 10–15 days. Confirm the schedule with the final order.
