PET Release Film for Waterproofing Membrane Production
A polyester release liner for adhesive protection and clean removal. Choose 25, 30 or 36 μm common gauges, then match the coated side and roll format to your line.
The right material for the right layer.
PET release film combines a polyester film substrate with a release-coated surface. It protects the adhesive layer during membrane storage and handling, then separates during application. Film thickness and release performance are separate selection decisions.
Where it is used
For removable protection on self-adhesive waterproofing membranes. Specify the adhesive-contact face, required release level and winding direction when ordering.
Specifications & available formats.
| Material | Release-coated PET (polyester) film |
|---|---|
| Thickness range | 20–50 μm |
| Common thicknesses | 25 / 30 / 36 μm |
| Common widths | 960 / 1060 mm |
| Converting width range | 50–2020 mm |
| Typical roll length | Approx. 5000 m; confirm the selected format |
| Appearance | Clear / milky white |
Include the selected specification, quantity and destination in your inquiry. Roll format and packing are confirmed with the quotation.
Technical data for the stated grade.
| Substrate | Polyethylene terephthalate (PET) |
|---|---|
| Surface function | Release-coated face for adhesive protection |
| Release specification | Agree release level, coated side and test conditions for the chosen adhesive |
Release performance is specified for the selected coating and adhesive combination. No universal release-force value is applied to every PET thickness.
Make the order fit your production.
Choose the substrate and release system together
A PET substrate does not identify the release level. Include the adhesive system and coated face with the thickness and width.
Confirm the roll weight from the actual width
At 25 μm, theoretical yield is approximately 28.4 m²/kg. A 5000 m roll is approximately 169 kg at 960 mm wide, or 187 kg at 1060 mm wide, before core, coating and packaging.
Plan the pallet around your handling limit
Pallet arrangements vary with roll diameter and weight. Ask for the roll count, net weight and gross pallet dimensions together.

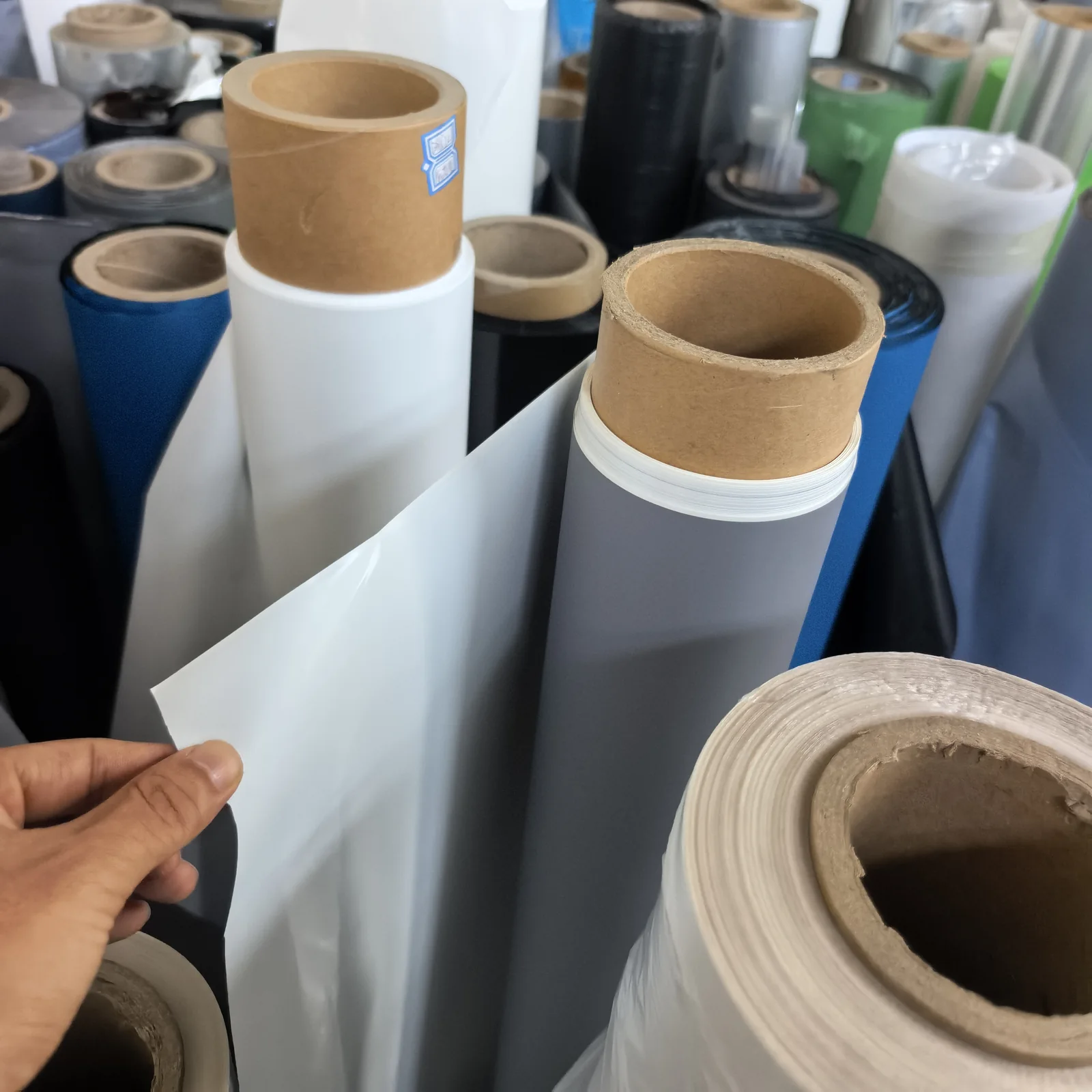

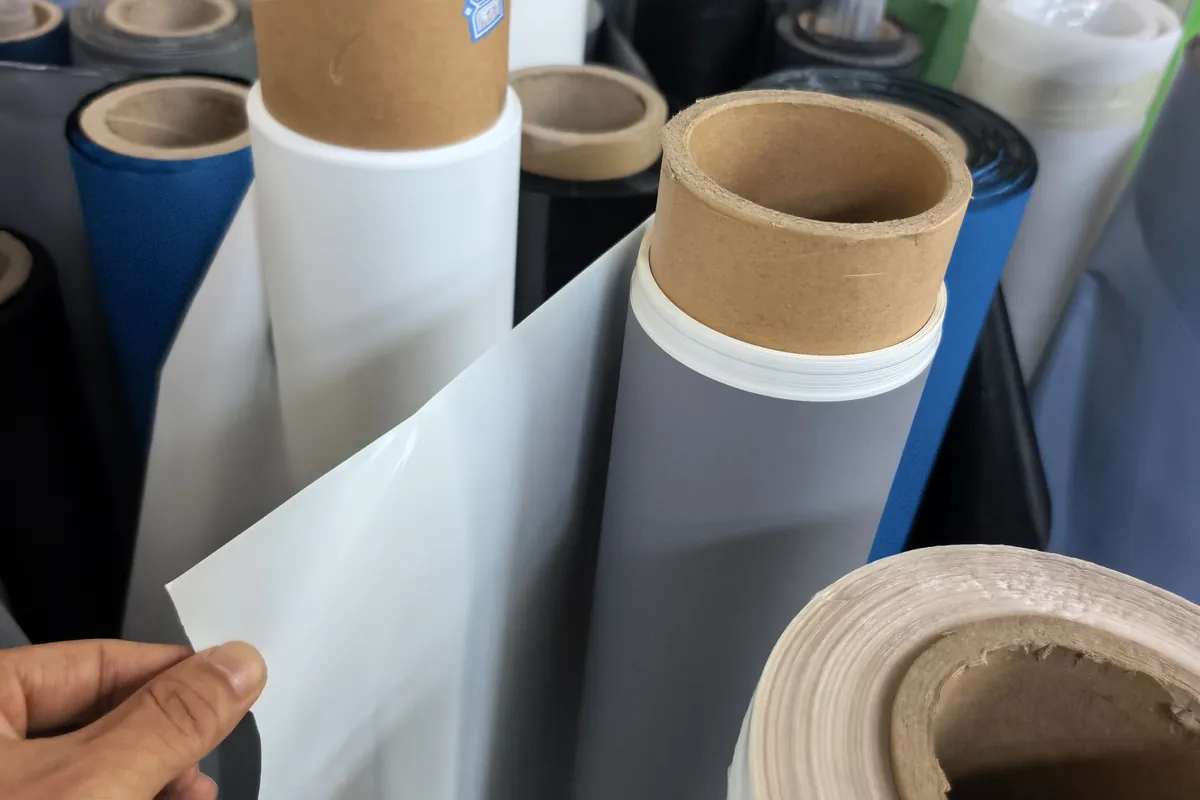

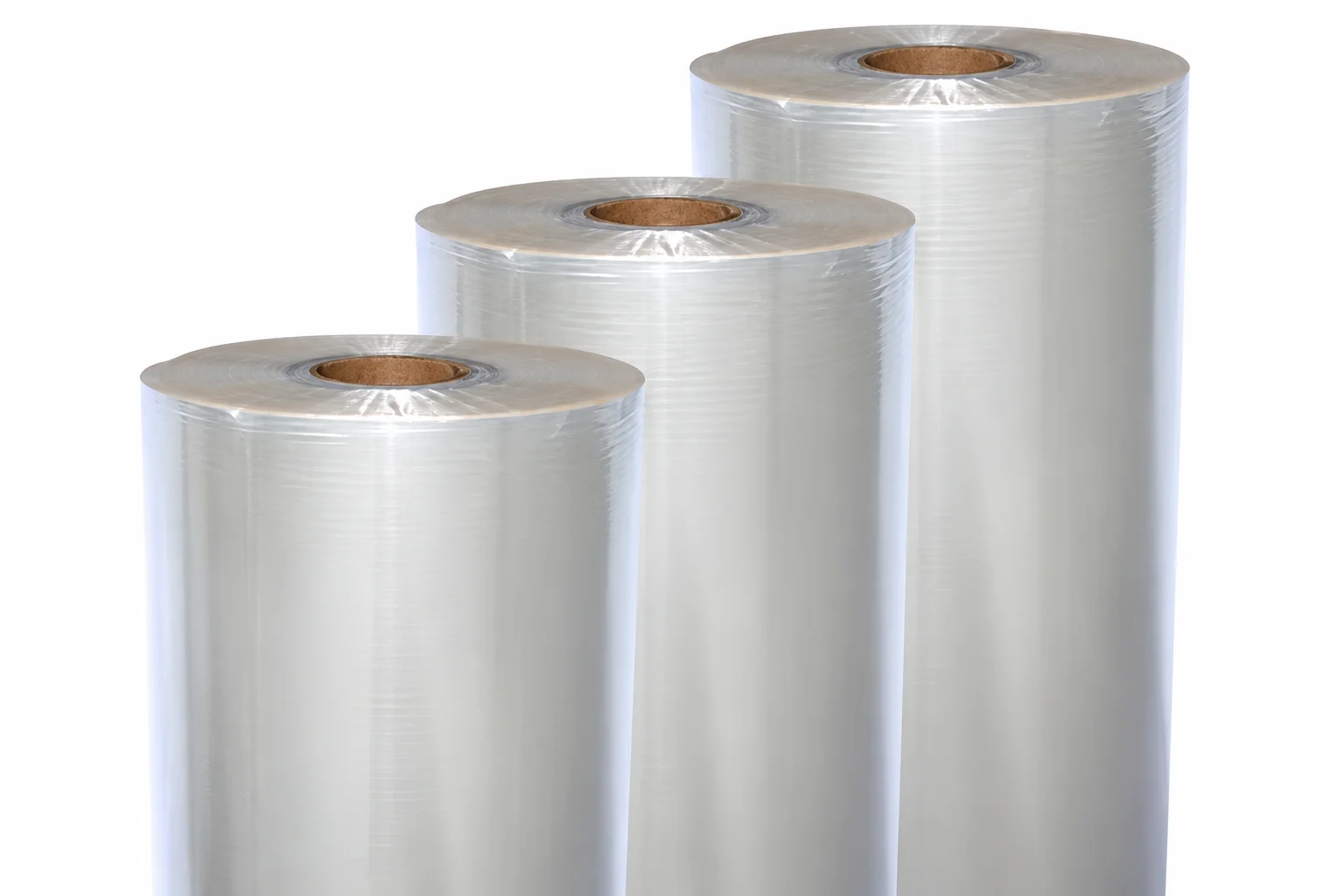

Product, packing and handling views.
Agree the packing before shipment.
| Roll length | Approx. 5000 m; final length by order |
|---|---|
| Roll weight | Depends on thickness, width and length |
| Pallet planning | Approx. 900 kg is a general planning reference; roll count and actual net/gross weights are confirmed for each format |
Packing photographs show examples. The final packing list states the roll count, net/gross weight and dimensions for the actual order.
Production lead time
Standard order: approximately 10 days for one 40-ft container order.
Customized specification: approximately 10–15 days.
Confirm the schedule against the final specification and order. Ocean or road transit is separate from production lead time.
Request packing and delivery details →Download the raw-material catalogue.
Keep the specifications together.
Download the English raw-material catalogue, with separate specifications and technical-data sections.
Questions about PET Release Film.
Which PET release-film gauges are common?
25, 30 and 36 μm are common gauges within the 20–50 μm range. Common widths are 960 and 1060 mm.
Does every 5000 m roll weigh 178 kg?
No. Width and thickness change the weight. For example, a 25 μm film is theoretically about 169 kg at 960 mm × 5000 m and 187 kg at 1060 mm × 5000 m, excluding core, coating and packaging.
Is PET release film the same as PET carrier film?
No. The release film is removed from the adhesive layer. PET carrier film is selected for an internal layer in the membrane structure.
What should I send for a quotation?
Send the gauge, width, roll length or weight, coated side, adhesive type, required release level, quantity and destination port.
Materials for the next layer.
PE Release Film
35 / 40 μm common gauges · 960 / 1060 mm common widths
View specifications →
PET Carrier Film
PET film carrier · 70 / 100 μm listed gauges
View specifications →
Continuous-Filament Polyester Nonwoven
120–300 g/m² supply grades · 1010 / 1020 mm widths
View specifications →Send your specification.
Get a clear material quote.
Tell us what you produce, the material you need and your required roll format. Include the quantity and destination port so we can prepare the product and packing details together.
Useful details: thickness or basis weight, width, roll length or weight, core, quantity and application. For release film, add coated side and release requirements.
Standard production: approximately 10 days for one 40-ft container order. Customized specifications: approximately 10–15 days. Confirm the schedule with the final order.
