Continuous-Filament Polyester Reinforcement for SBS / APP Membranes
Choose the reinforcement grade your membrane needs. Continuous-filament polyester nonwoven in 120–300 g/m² supply grades, with 1010 and 1020 mm roll widths.
The right material for the right layer.
Continuous-filament polyester nonwoven forms the reinforcement carrier inside SBS and APP bituminous waterproofing membranes. Basis weight, strength and dimensional behaviour are selected together for the finished membrane design.
Where it is used
For reinforcement in SBS / APP bituminous waterproofing membranes and asphalt shingles. Match the chosen nonwoven grade to the impregnation process and finished-product requirements.
Specifications & available formats.
| Material | Continuous-filament polyester nonwoven |
|---|---|
| Supply grades | 120 / 140 / 160 / 180 / 200 / 220 / 240 / 250 / 260 / 280 / 300 g/m² |
| Roll widths | 1010 / 1020 mm |
| Order format | Basis weight, width, roll length and handling limit |
| Technical comparison below | 120 / 140 / 160 / 180 / 200 / 250 g/m² |
Include the selected specification, quantity and destination in your inquiry. Roll format and packing are confirmed with the quotation.
Technical data for the stated grade.
On a small screen, swipe the table horizontally to compare grades.
| Item / unit | 120 g/m² | 140 g/m² | 160 g/m² | 180 g/m² | 200 g/m² | 250 g/m² |
|---|---|---|---|---|---|---|
| Mass variation (%) | 10 | 10 | 10 | 10 | 10 | 10 |
| Tensile force TD (N/50 mm) | 270 | 320 | 380 | 500 | 550 | 830 |
| Tensile force MD (N/50 mm) | 350 | 400 | 470 | 600 | 650 | 950 |
| Tear strength TD (N) | 250 | 280 | 320 | 350 | 370 | 470 |
| Tear strength MD (N) | 280 | 300 | 330 | 360 | 380 | 500 |
| Elongation at break MD (%) | 22 | 25 | 28 | 31 | 33 | 38 |
| Elongation at break TD (%) | 28 | 32 | 35 | 37 | 38 | 45 |
| Water resistance (%) | 95 | 95 | 95 | 95 | 95 | 95 |
| Moisture content (%) | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 | 0.50 |
| Thermal dimensional stability (%) | 1.50 | 1.40 | 1.20 | 1.00 | 0.90 | 0.60 |
Technical requirements apply to the grade shown. MD = machine direction; TD = transverse direction. Supply grades outside this table require their own agreed specification.
Make the order fit your production.
Compare more than the gram weight
The table separates MD and TD tensile force, tear strength, elongation and thermal dimensional stability. Compare the properties that matter to your membrane rather than buying on weight alone.
Confirm width before roll preparation
Standard supply widths are 1010 and 1020 mm. Specify the correct width and usable roll length for your production equipment.
Keep different reinforcement structures separate
A continuous-filament polyester nonwoven and a glass-scrim compound base mat have different structures. Choose against the membrane design rather than treating them as interchangeable grades.

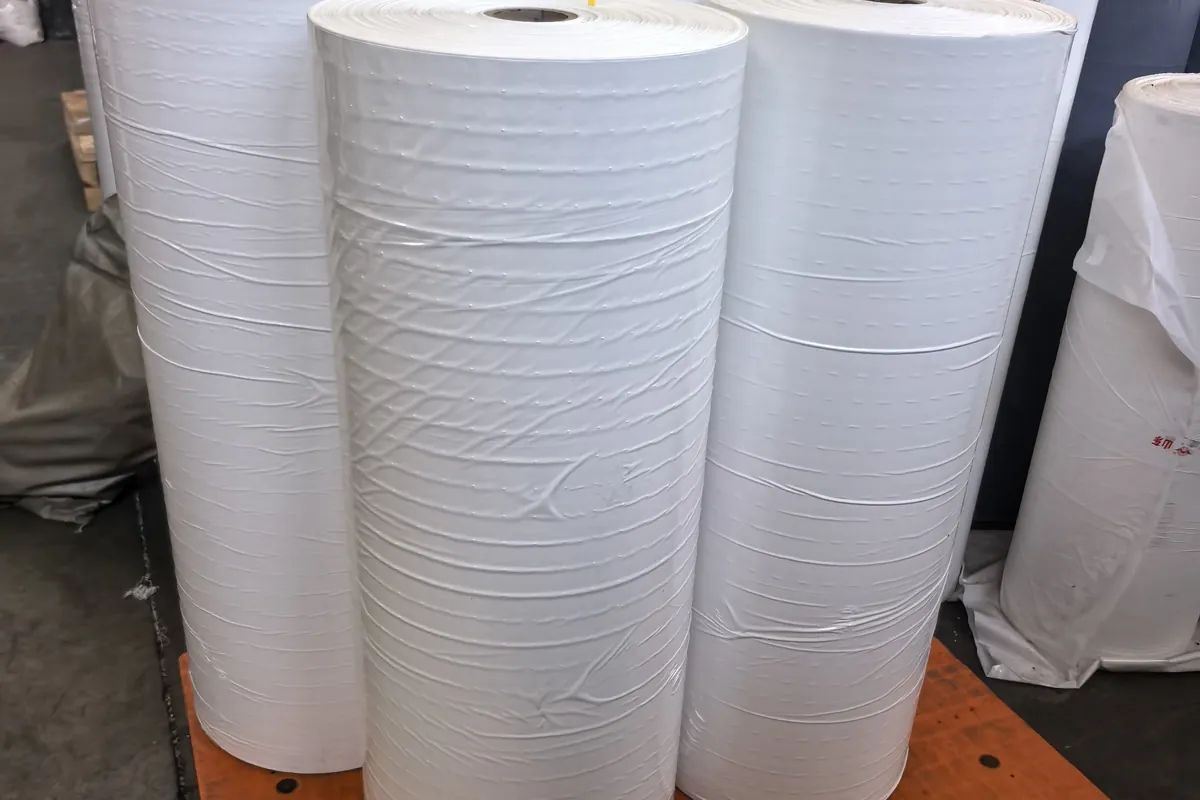

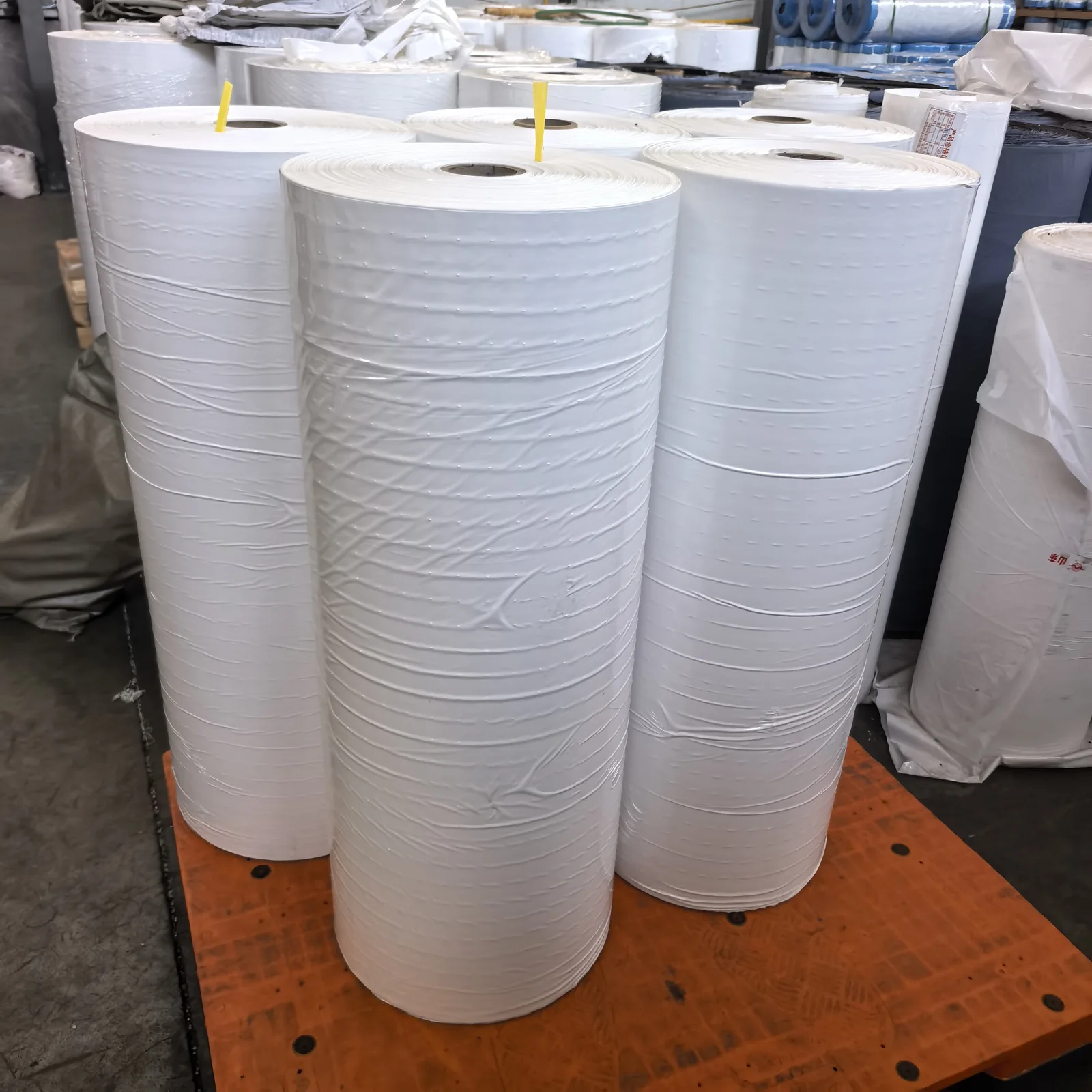

Product, packing and handling views.
Agree the packing before shipment.
| Protection | Wrapped rolls; agree end protection and handling format |
|---|---|
| Roll format | Width, length and roll weight confirmed for the chosen basis weight |
| Target roll diameter | Approx. 1150 mm |
| Roll height / width | 1010 / 1020 mm |

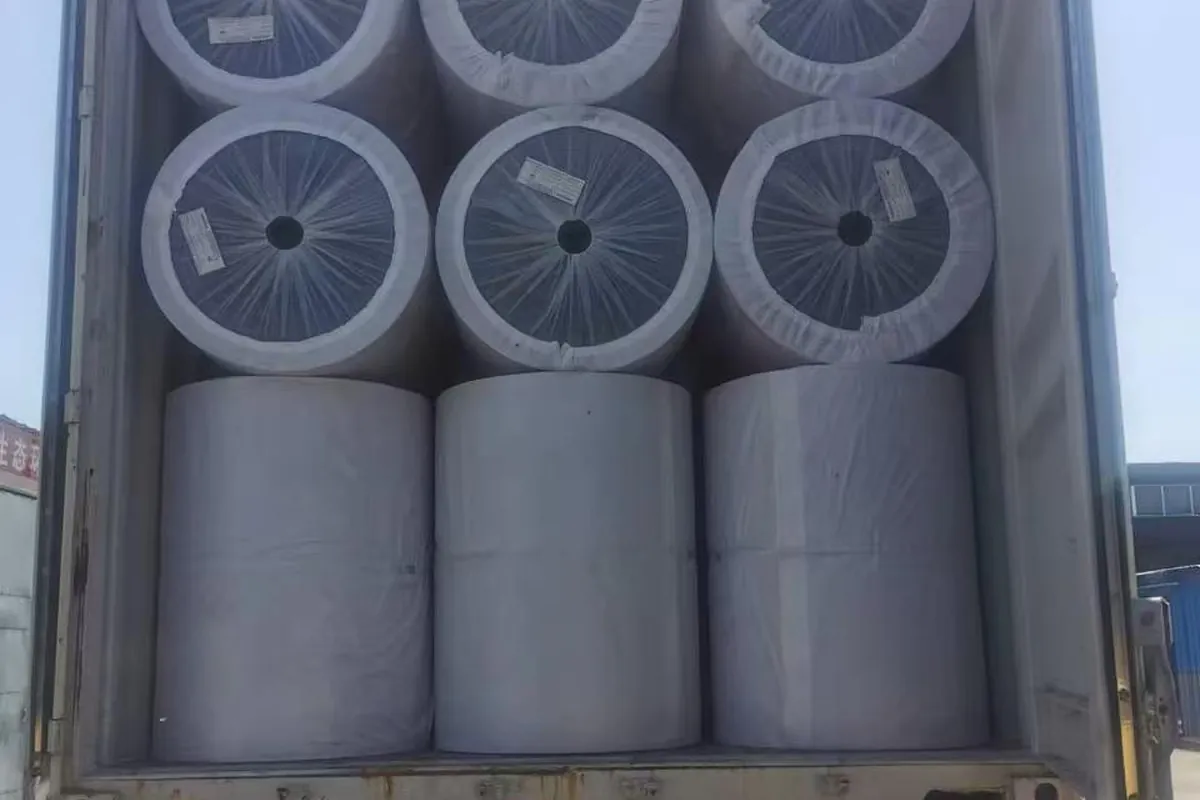

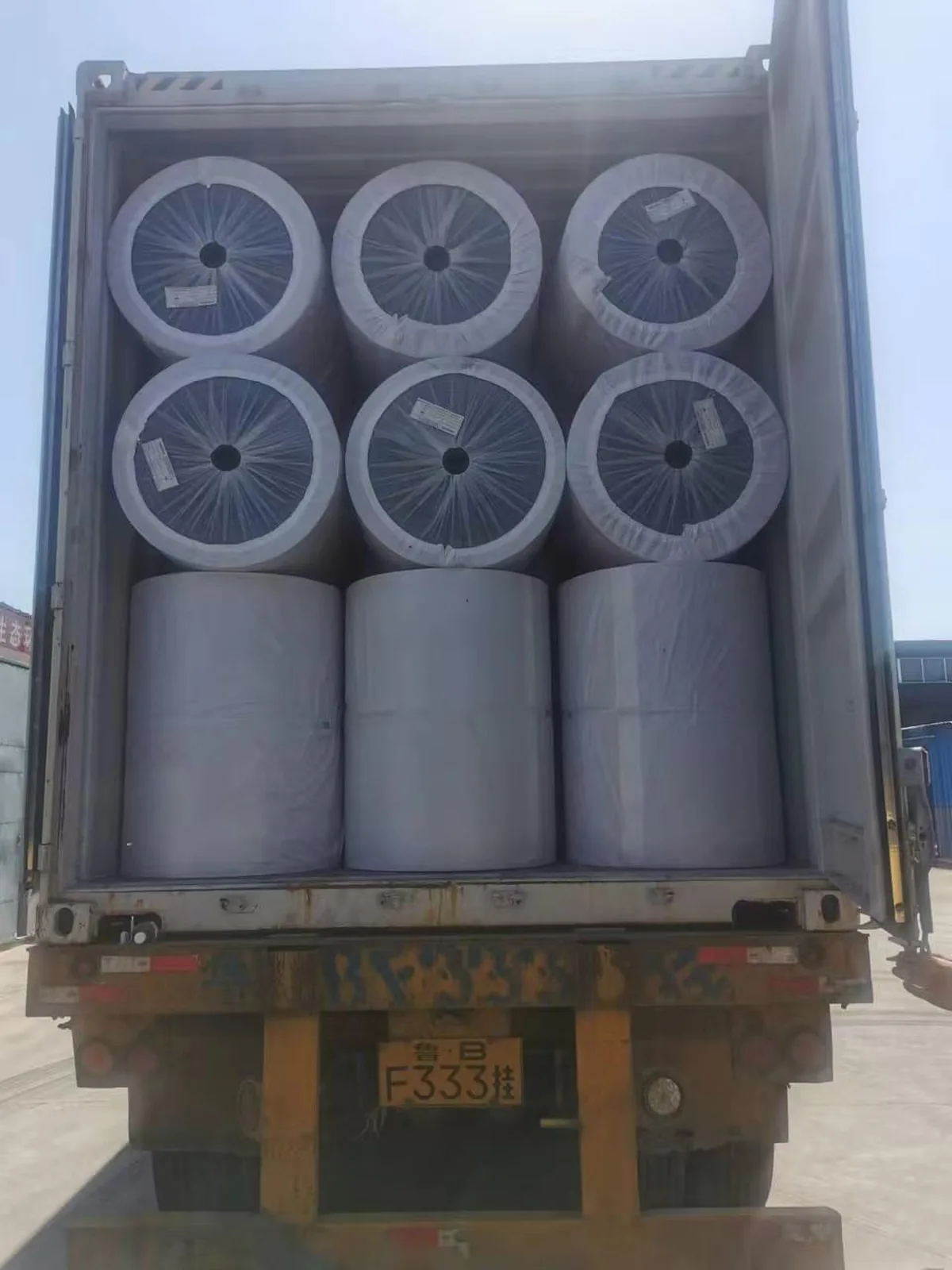

| 40-ft container, palletized | 40 pallets, one roll per pallet: 40 rolls |
| 40-ft container, direct loading | 44 rolls without pallets |
| Preferred shipment | 40-ft container; final loading plan follows the actual roll dimensions |
Packing photographs show examples. The final packing list states the roll count, net/gross weight and dimensions for the actual order.
Production lead time
Standard order: approximately 10 days for one 40-ft container order.
Customized specification: approximately 10–15 days.
Confirm the schedule against the final specification and order. Ocean or road transit is separate from production lead time.
Request packing and delivery details →Roll lengths & 40-ft container quantities.
| Grade (g/m²) | Approx. length / roll (m) | Reference mat mass / roll (kg, 1 m basis) | 40 rolls, palletized (linear m) | 44 rolls, direct loading (linear m) |
|---|---|---|---|---|
| 120 | 2,170 | 260.4 | 86,800 | 95,480 |
| 140 | 1,860 | 260.4 | 74,400 | 81,840 |
| 160 | 1,630 | 260.8 | 65,200 | 71,720 |
| 180 | 1,450 | 261.0 | 58,000 | 63,800 |
| 200 | 1,230 | 246.0 | 49,200 | 54,120 |
| 220 | 1,120 | 246.4 | 44,800 | 49,280 |
| 240 | 1,020 | 244.8 | 40,800 | 44,880 |
| 250 | 980 | 245.0 | 39,200 | 43,120 |
| 260 | 950 | 247.0 | 38,000 | 41,800 |
| 280 | 880 | 246.4 | 35,200 | 38,720 |
| 300 | 820 | 246.0 | 32,800 | 36,080 |
180 g/m² × 1450 m and 200 g/m² × 1230 m are the confirmed common roll lengths. Other rows are indicative planning estimates, scaled from these two reference formats and rounded to practical lengths; final length depends on measured thickness and winding compression at the target diameter of approximately 1150 mm. Actual roll width is 1010 or 1020 mm.
Weight calculation: basis weight × actual width (m) × length ÷ 1000. The 180 g/m² reference is approximately 261 kg on a 1 m basis, or approximately 263.6 / 266.2 kg at 1010 / 1020 mm. Core and packing are additional. Container planning: 40 palletized rolls or 44 directly loaded rolls; agree gross weight and loading details with the order.
Download the raw-material catalogue.
Keep the specifications together.
Download the English raw-material catalogue, with separate specifications and technical-data sections.
Questions about Continuous-Filament Polyester Nonwoven.
Which polyester grades can I order?
Supply grades are 120, 140, 160, 180, 200, 220, 240, 250, 260, 280 and 300 g/m². The technical comparison covers the six grades shown in the table.
How should I compare reinforcement grades?
Compare the basis weight together with MD and TD tensile force, tear strength, elongation and thermal dimensional stability. The technical table keeps these properties aligned by grade.
Which roll widths are common?
1010 and 1020 mm are the listed supply widths. Include the required length and roll handling limit in the inquiry.
Are the values a test certificate for my shipment?
The table is a grade-specific technical requirement comparison. Agree on the selected specification and the documents required for your order; the table is not a certificate for an individual shipment.
