PET / Aluminium Foil Laminate for Membrane Facings
A real aluminium foil layer laminated with PET. Common total gauges of 35, 40 and 45 μm use a 7 μm solid foil layer, with 1000–1030 mm widths.
The right material for the right layer.
This facing material combines a solid aluminium foil layer with a supporting PET film. The stated total gauge describes the laminate; it must not be confused with a PET film carrying only a deposited metallic coating.
Where it is used
For metallic facings on bituminous waterproofing membranes. Agree on the laminate build, surface finish and converting format for the membrane production process.
Specifications & available formats.
| Total thickness range | 20–50 μm |
|---|---|
| Additional available gauge | 22 μm; layer build confirmed for the selected order |
| 35 μm build | 28 μm PET + 7 μm aluminium foil |
| 40 μm build | 33 μm PET + 7 μm aluminium foil |
| 45 μm build | 38 μm PET + 7 μm aluminium foil |
| Width | 1000–1030 mm |
| Surface finish | Plain / printed options |
Include the selected specification, quantity and destination in your inquiry. Roll format and packing are confirmed with the quotation.
Technical data for the stated grade.
| Mechanical reference grade | 45 μm laminate |
|---|---|
| Maximum force — MD / TD | 282 / 348 N/50 mm |
| Elongation at break — MD / TD | 93% / 80% |
The mechanical values apply to the 45 μm laminate only. The solid aluminium layer is 7 μm in the common constructions listed above.
Make the order fit your production.
Ask for the layer build
State total thickness and the thickness of each layer. “Aluminium film” alone does not identify whether a solid foil layer is present.
Match the facing to the membrane
Provide the membrane type, bonding method and required surface finish so the laminate can be selected for the process.
Confirm roll handling
Agree core, width, roll length and packing protection for the foil surface before shipment.

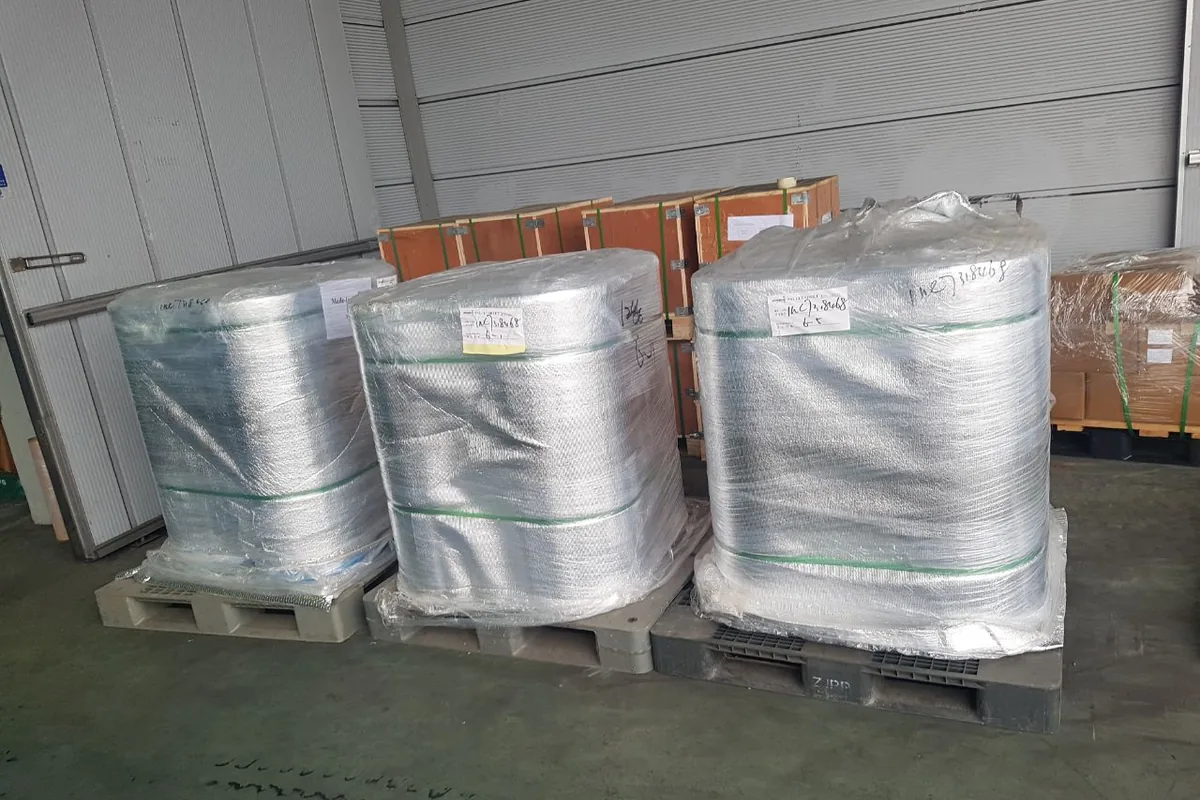

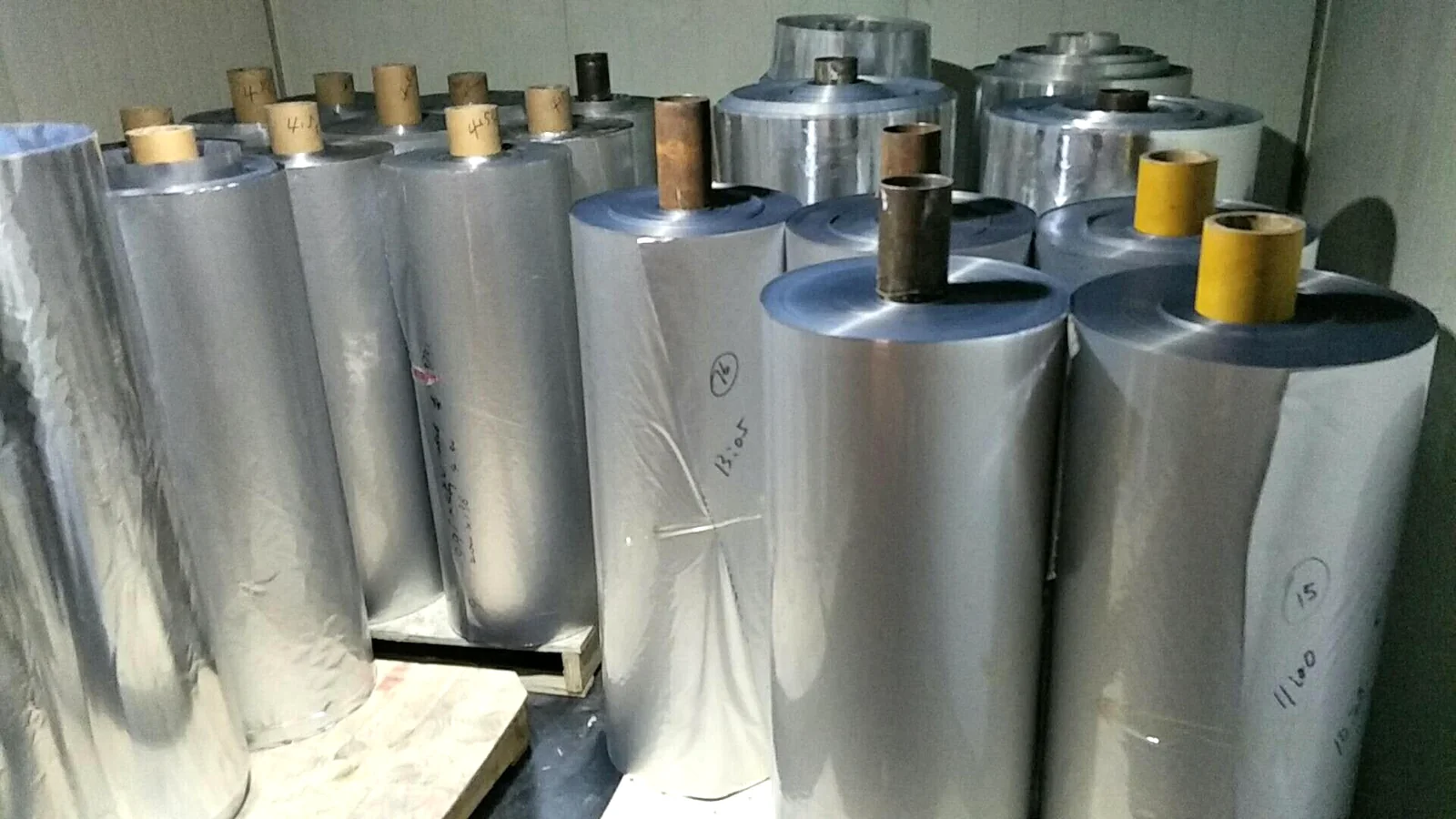

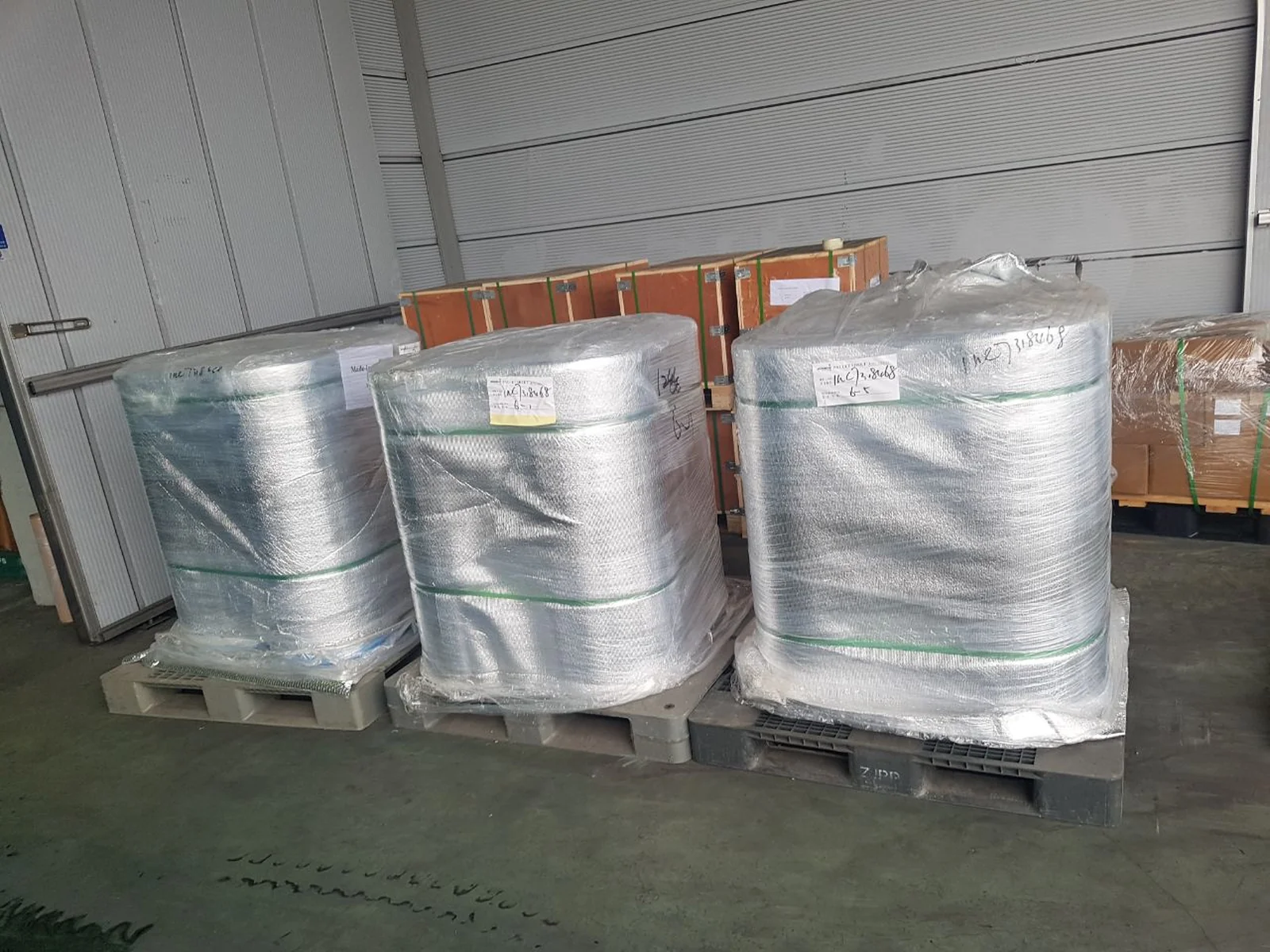

Product, packing and handling views.
Agree the packing before shipment.
| Common roll length | Approx. 3000 m |
|---|---|
| Typical pallet layout | 4 rolls per pallet |
| Pallet planning reference | Approx. 900 kg; the actual weight depends on total gauge, width and roll length |
| 900 kg / four-roll format | Approx. 225 kg per roll; adjust roll length to the selected grade |
| Protection | Protect foil surfaces and roll ends; confirm net/gross weights and pallet dimensions |
Packing photographs show examples. The final packing list states the roll count, net/gross weight and dimensions for the actual order.
Production lead time
Standard order: approximately 10 days for one 40-ft container order.
Customized specification: approximately 10–15 days.
Confirm the schedule against the final specification and order. Ocean or road transit is separate from production lead time.
Request packing and delivery details →Material yield & roll-weight planning.
| 22 μm laminate | Approx. 26.0 m²/kg |
|---|---|
| 35 μm laminate | Approx. 18.4 m²/kg |
| 40 μm laminate | Approx. 16.2 m²/kg |
| 45 μm laminate | Approx. 14.6 m²/kg |
| 3000 m × 1000 mm, 40 μm example | Approx. 185 kg per roll; four rolls approx. 741 kg of film |
These approximate laminate yields are supply-planning references by grade. They are not plain-PET density values or batch test results. Width, layer build and actual yield determine roll weight; 3000 m rolls and a 900 kg pallet reference are not an identical weight at every gauge.
Download the raw-material catalogue.
Keep the specifications together.
Download the English raw-material catalogue, with separate specifications and technical-data sections.
Questions about PET / Aluminium Foil Laminate.
Does 40 μm mean 40 μm of aluminium?
No. It is the total common laminate gauge: 33 μm PET plus 7 μm aluminium foil.
Is this the same as metallized PET?
No. This laminate contains solid aluminium foil. Metallized PET has a deposited aluminium coating without a separate solid foil layer.
Which grade does the mechanical table describe?
The maximum-force and elongation values are for the 45 μm laminate only.
How do I estimate film area from weight?
Use the grade-specific approximate yield table below. These are supply-planning references for the laminate, not the density calculation for plain PET. Actual yield is confirmed against the selected construction.
